GPU Specifications
- Xe-cores: 20
- Render Slices: 5
- Ray Tracing Units: 20
- Intel® Xe Matrix Extensions (Intel® XMX) Engines: 160
- Xe Vector Engines: 160
- Graphics Clock: 2670 MHz
- GPU Peak TOPS (Int8): 233
- TBP: 190 W
- PCI Express Configurations: PCI Express 4.0 x8
Memory Specifications
- Memory: 12 GB GDDR6
- Graphics Memory Interface: 192 bit
- Graphics Memory Bandwidth: 456 GB/s
- Graphics Memory Speed: 19 Gbps
I/O Specifications
- # of Displays Supported: 4
- Graphics Output: HDMI* 2.1, DP2.1 up to UHBR 13.5, DP2.1 up to UHBR 10
- HDMI Variable Refresh Rate (VRR): Yes
- VESA Adaptive Sync: Yes
- Media Profiles: HDR10, HDR10+ Gaming, Dolby Vision
- Max Resolution (HDMI): 7680 x 4320@120Hz
- Max Resolution (DP): 7680 x 4320@60Hz
Features
- H.264 Hardware Encode/Decode: Yes
- H.265 (HEVC) Hardware Encode/Decode: Yes
- AV1 Encode/Decode: Yes
- VP9 Bitstream & Decoding: Yes
Supported Technologies
- Ray Tracing: Yes
- oneAPI Support: Yes
- OpenVINO™ Support: Yes
- DirectX Support: DirectX 12 Ultimate
- Vulkan Support: 1.3
- OpenGL Support: Up to 4.6
- OpenCL Support: 3.0
- Multi-Format Codec Engines: 2
- Intel® Extension for PyTorch (IPEX) Support: Yes
- Intel® Xe Super Sampling (XeSS) Support: Yes

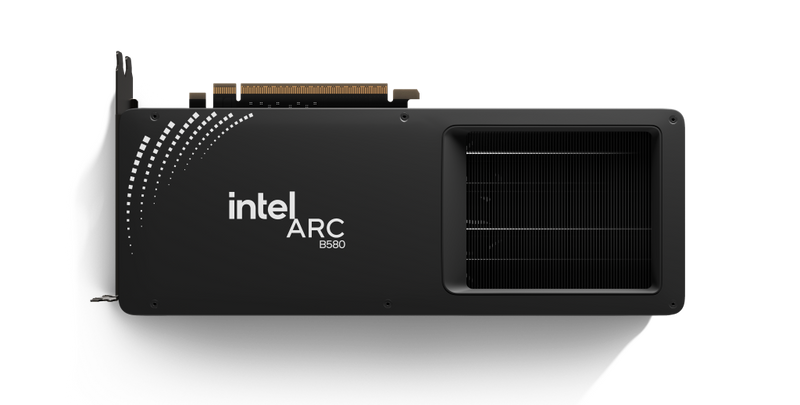

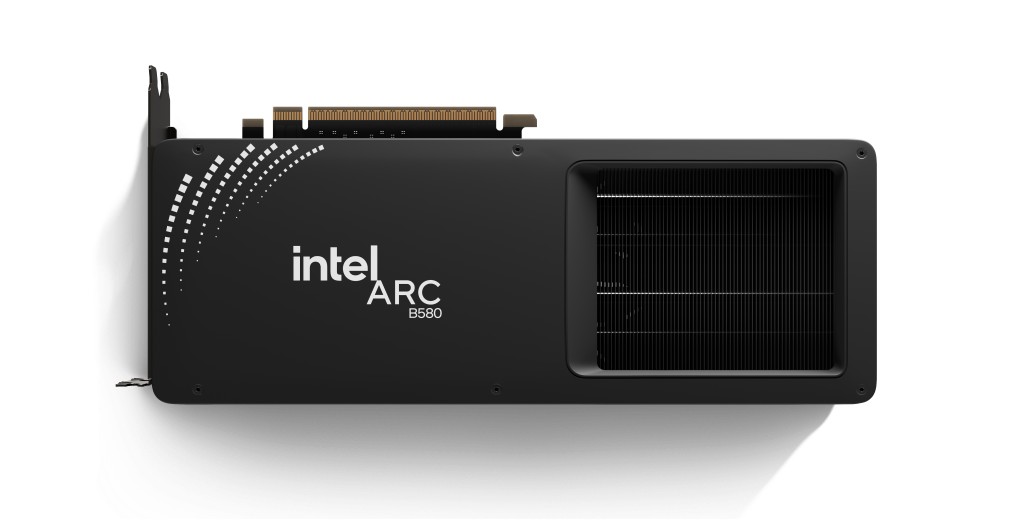

Intel Reference Card Attributes
- Dimensions (Length x Width): 272 x 115 mm
- Slots: 2
- Weight: 779 G
- Minimum Power Supply Unit: 600 W
- Power Connectors: 1 x 8-pin
