TP-Link 8 Port Gigabit Switch

8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop or wall-mounting design

Plug and play, no configuration required

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Physical Security Lock: No
• External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
• Jumbo Frame: 15 KB
• Switching Capacity: 16 Gbps
• Dimensions: ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)
• Max Power Consumption: 4.63W(220V/50Hz)
• Max Heat Dissipation: 15.80BTU/h

SOFTWARE FEATURES

• Transfer Method: Store and Forward
• MAC Address Table: 4K
• Advanced Functions: Green Technology, 802.3X Flow Control, Back Pressure, 802.1p/DSCP QoS (for V7 and later version)

OTHERS

• Certification: FCC, CE, RoHs

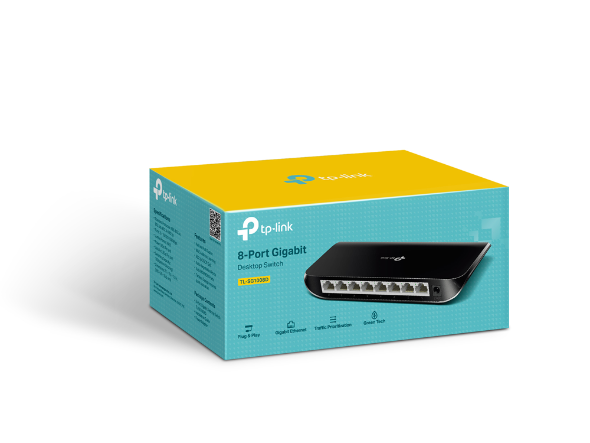

• Package Contents: 8-Port Gigabit Desktop Switch TL-SG1008D, Power Adapter, Installation Guide
• Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
