TP-Link Archer MR600 AC1200 Wireless Dual Band 4G + Gigabit Router

TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*

Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and Smart TVs

Plug in a SIM card and play – no configuration needed, compatibility of SIM cards in 100+ countries are assured by years of field testing

Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two detachable external LTE antennas

Wi-Fi router mode with VLAN TAGGING supported – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Supports TP-Link OneMeshTM – compatible with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network

Enhanced Network type (compatible with Telstra, Optus and Vodafone network) – 4G: FDD-LTE B5 (850MHz) / B28 (700MHz); 3G: B5 (850MHz)

HARDWARE FEATURES

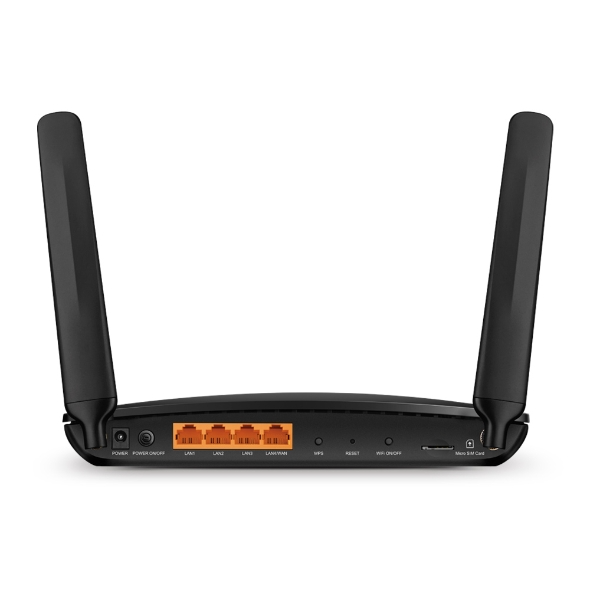

• Interface:

1 × 10/100/1000 Mbps LAN/WAN Port
3 × 10/100/1000 Mbps LAN Ports
1 × Micro SIM Card Slot

• Button: WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button
• External Power Supply:

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1.5A

• Dimensions: ( W x D x H ) 9.0×6.3×1.5 in ( 229×160×37 mm)
• Antenna: 2 × Detachable 4G LTE Antennas

WIRELESS FEATURES

• Wireless: Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• Reception Sensitivity:

5 GHz: 11a 54M: -74 dBm
11ac HT20: -66 dBm
11ac HT40: -63 dBm
11ac HT80 : -59 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm

• Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics
• WAN Failover: Yes
• Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type:

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Carrier Aggregation:
B1+ B5/B7/B8/B20
B3+B3/B5/B7/B8/B20/B28/B38/B40
B5+B5/B7/B40
B7+B7/B8/B20/B28
B28+B40
B38+B38
B40+B40
B41+B41

SOFTWARE FEATURES

• Quality of Service: Prioritizes network traffic by device or application
• Security: DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management: TP-Link Cloud, Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: TP-Link, DynDns, NO-IP
• VPN: PPTP VPN, IPSec VPN , OpenVPN
• Access Control: Parental Control, Local Management Control
• Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
• Protocols: IPv4, IPv6
• Guest Network: 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

OTHERS

• Certification: CE, RoHS
• Package Contents:

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

• System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card

• Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
